Shimano Nexus STePS SG-C7000-5D Internal Gear Hub for E-Bike - Centerlock - 10x135mm Nut Type - 5-Speed - black

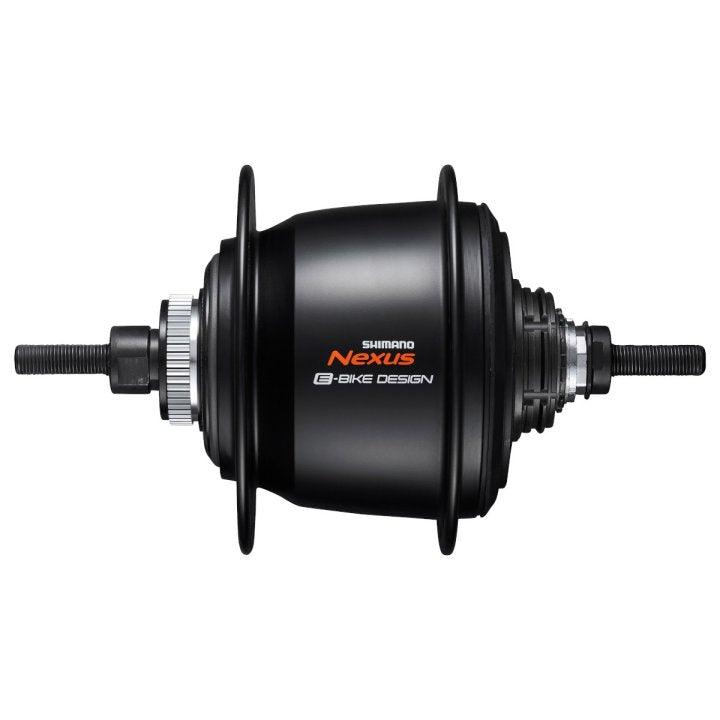

Shimano Nexus STePS SG-C7000-5D Internal Gear Hub for E-Bike

Centerlock | 10x135mm Nut Type | 5-Speed | Black

The Shimano Nexus SG-C7000-5D is a robust internal gear hub designed specifically for E-Bikes, engineered to handle higher pedaling forces during gear shifts. With an impressive 263% total gear ratio, it ensures smooth and efficient power transfer. The hub is fully sealed, offering excellent protection against the elements, making it reliable in all weather conditions.

This model is compatible with Shimano STePS E6100 and E5000 series components and features a Centerlock disc brake mount for superior braking performance.

Key Features

• Optimized for E-Bikes, designed to withstand high pedaling forces
• 5-speed internal gear system with a 263% total gear ratio
• Fully sealed for durability and weather resistance
• Centerlock disc brake mount for reliable stopping power
• Compatible with Shimano STePS E6100 and E5000 series

Technical Specifications

• O.L.D. (Over Locknut Dimension): 10x135 mm (Nut Type)
• Axle Length: 187 mm
• B.C.D. (Bolt Circle Diameter): 92.6 mm
• Flange Diameter: 105.2 mm
• Flange Distance: 57.3 mm
• Flange Width (Left/Right): 3.2 mm
• Offset: 3.4 mm

Model Variants & Spoke Holes

• ISGC70005DBL – 32 spoke holes
• ISGC70005DAL – 36 spoke holes

Material & Weight

• Material: Aluminum (painted)
• Weight: Manufacturer’s specifications

This hub is a reliable and durable choice for E-Bike riders looking for smooth shifting and long-lasting performance.
