| Framesize |
Wave 27.5": 45, 50, 55 cm |
| Drive Unit |
Bosch Performance Line CX, Gen. 4, 36 V Mid-engine, 250 Watt |
| Display |
Intuvia |
| Power |
Bosch Frame battery fully integrated, 500 Wh, 36 Volt, 13.4 Ah, Down tube |
| Frame |
Aluminum 6061, Bosch fully integrated |
| Max Load |
140 kg |
| Color |
Dark Blue Glossy |
| Fork |
Suntour XCM34, 100 mm travel with lockout-function |
| Headset |
Acros AZX-220 R4, tapered, with limit stop |

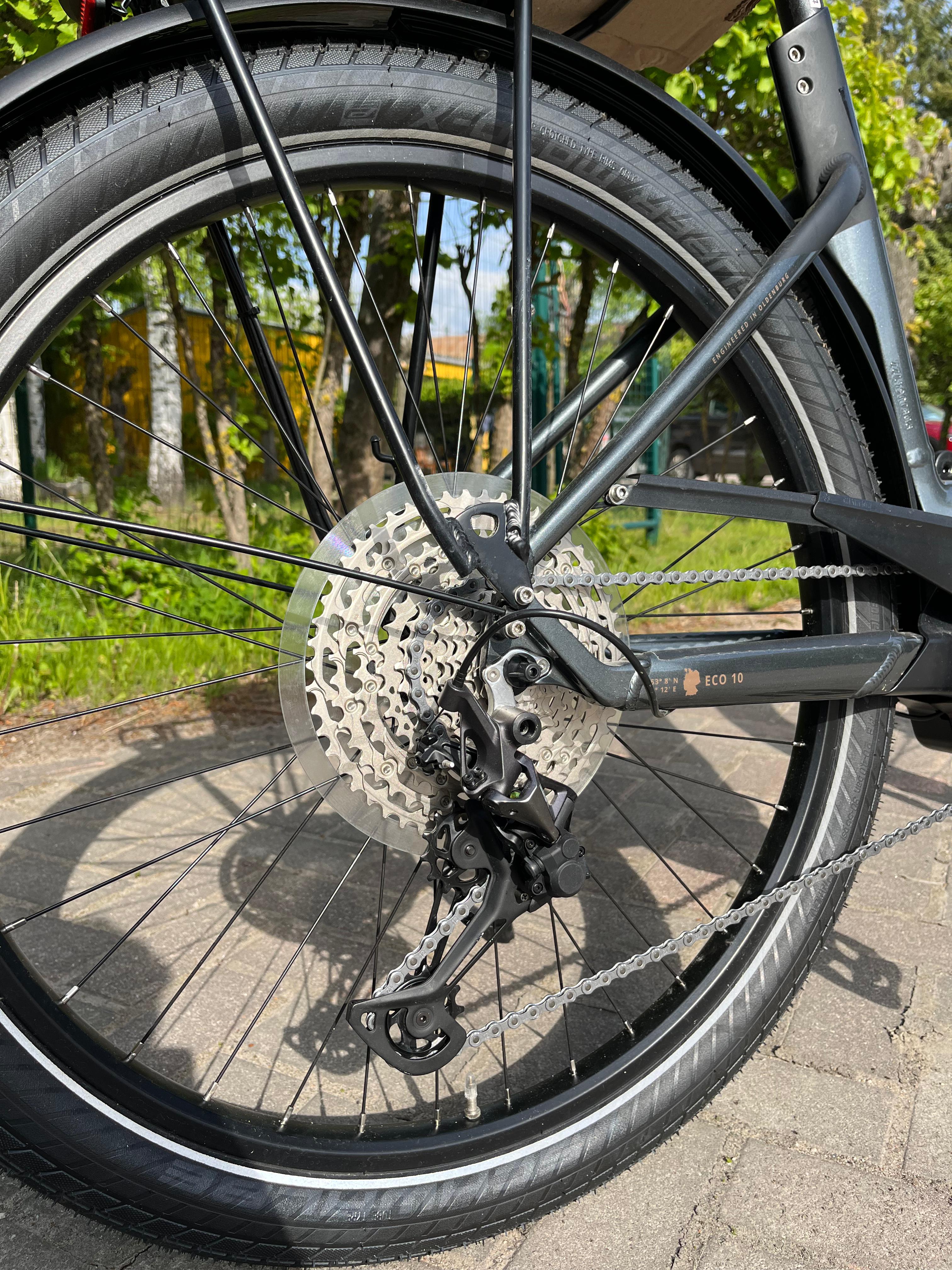

| Shifting System |
Microshift XCD RD-M865M, 11-speed, with clutch |
| Damper |
N.V. |
| Derailleur |
N.V. |
| Brakes |
Radius BH-M960 (front 180 mm / rear 160 mm) Disc brake |
| Headlights |
Busch & Müller Lumotec IQ-XS Highbeam, with High beam, 150 / 100 LUX including standinglight |
| Rear Light |
Trelock LS 654, with brake light function, including standinglight |
| Carriers |
Racktime Stand-it, with spring flap |
| Saddle |
Selle Royal Essenza |
| Seat Post |
Humpert Ergotec Atar, patent, 30.9 mm, 300 mm |
| Pedals |
Marwi SP-823 |
| Kickstand |
Pletscher Comp Flex, rear kickstand |
| Chainguard |
SKS Chainbow_E |
| Mudguard |
SKS, plastic |
| Weight |
27.9 kg |
| Stem |
Ahead, angle adjustable, aluminum, 31.8mm |
| Handlebars |
Promax HB-3188, 640 mm |
| Grips |
Ergon GP1, with clamp |
| Shift Lever |
Microshift XCD SL-M861-R, 11-speed |
| Brake Lever |
Radius BH-M960, 3-finger brake lever |
| Tires |
Schwalbe Marathon Plus MTB, 57-584, reflex |
| Rims |
Schürmann YAK 21 Disc aluminum, 36 holes |
| Spokes |
2.0 mm, black |
| Front Hub |
Joytech, 15 x 110 mm, 36 holes |
| Rear Hub |
Joytech D042SB-11S, 36 holes |
| Sprocket |
Microshift XLE CS-H113, 11-speed, 11-46 teeth |
| Chain |
KMC E11 EPT |
| Inner Bearing |
N.V. |
| Bottom Bracket |
Miranda aluminum, 170 mm, KMC chainring 38 teeth |
| Gear Ratio (Front:Rear) |
38 teeth : 11-46 teeth |
